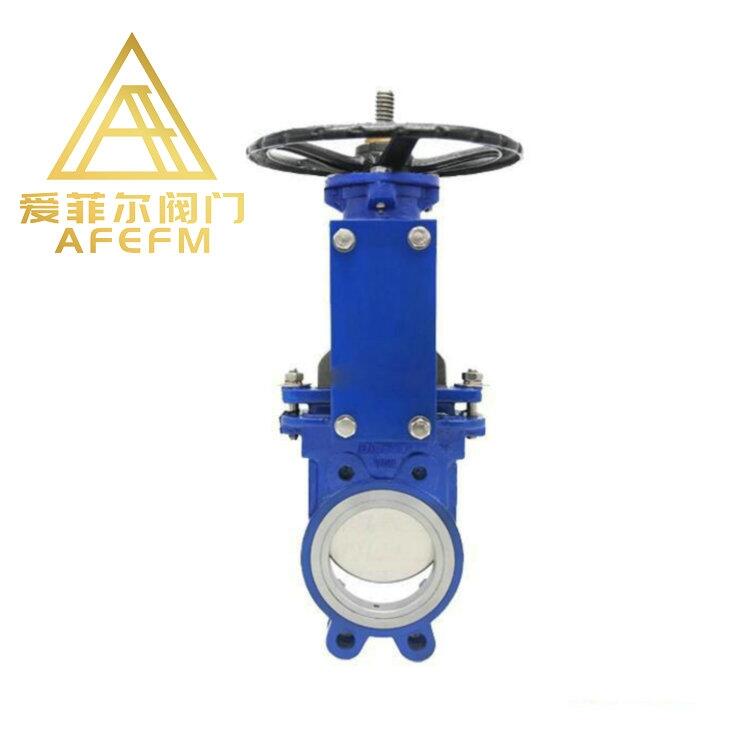

手動刀形閘閥主要性能規范?
|
公稱壓力（MPa)?
|
殼體試驗（MPa)?
|
密封試驗（MPa)?
|
工作溫度?
|
適用介質?
|
|
1.0
1.6
|
1.5
2.4
|
1.1
1.8
|
≤100℃
≤100℃
|
紙漿、污水、煤漿、灰、渣水混和物?
|
手動刀形閘閥主要零部件材質
|
體、蓋?
|
閘閥?
|
閥桿?
|
密封面?
|
|
不銹鋼、碳鋼、灰鑄鐵?
|
碳鋼、不銹鋼?
|
不銹鋼?
|
橡膠、四氟、不銹鋼、硬質合金?
|
手動刀形閘閥主要外形及連接尺寸(mm)
|
MPa?
|
DN?
|
L?
|
D?
|
D1?
|
D2?
|
H?
|
N-M?
|
D0?
|
W(Kg)?
|
|
1.0?
|
50?
|
43?
|
160?
|
125?
|
100?
|
330?
|
4-M16?
|
180?
|
??
|
|
65?
|
46?
|
180?
|
145?
|
120?
|
360?
|
4-M16?
|
180?
|
??
|
|
80?
|
46?
|
195?
|
160?
|
135?
|
390?
|
4-M16?
|
220?
|
??
|
|
100?
|
52?
|
215?
|
180?
|
155?
|
440?
|
8-M16?
|
220?
|
??
|
|
125?
|
56?
|
245?
|
210?
|
185?
|
510?
|
8-M16?
|
230?
|
??
|
|
150?
|
56?
|
280?
|
240?
|
210?
|
600?
|
8-M20?
|
280?
|
??
|
|
200?
|
60?
|
335?
|
295?
|
265?
|
700?
|
8-M20?
|
360?
|
??
|
|
250?
|
68?
|
390?
|
350?
|
320?
|
840?
|
12-M20?
|
360?
|
??
|
|
300?
|
78?
|
440?
|
400?
|
368?
|
960?
|
12-M20?
|
400?
|
??
|
|
350?
|
78?
|
500?
|
460?
|
428?
|
1110?
|
16-M20?
|
400?
|
??
|
|
400?
|
102?
|
565?
|
515?
|
482?
|
1250?
|
16-M22?
|
400?
|
??
|
|
450?
|
114?
|
615?
|
565?
|
532?
|
1380?
|
20-M22?
|
530?
|
??
|
|
500?
|
127?
|
670?
|
620?
|
585?
|
1530?
|
20-M22?
|
530?
|
??
|
|
600?
|
154?
|
780?
|
725?
|
685?
|
1800?
|
20-M27?
|
600?
|
??
|
|
700?
|
165?
|
895?
|
840?
|
800?
|
2150?
|
24-M27?
|
600?
|
??
|
|
800?
|
190?
|
1010?
|
950?
|
898?
|
2420?
|
24-M30?
|
680?
|
??
|
|
900?
|
203?
|
1110?
|
1050?
|
1005?
|
2680?
|
28-M30?
|
680?
|
??
|
|
1000?
|
216?
|
1220?
|
1160?
|
1115?
|
3100?
|
28-M30?
|
700?
|
??
|
|
1200?
|
254?
|
1450?
|
1380?
|
1325?
|
3450?
|
32-M36?
|
800?
|
??
|
|
1.6?
|
50?
|
43?
|
160?
|
125?
|
99?
|
330?
|
4-M16?
|
180?
|
??
|
|
65?
|
46?
|
185?
|
145?
|
120?
|
360?
|
4-M16?
|
180?
|
??
|
|
80?
|
46?
|
200?
|
160?
|
135?
|
390?
|
8-M16?
|
220?
|
??
|
|
100?
|
52?
|
220?
|
180?
|
155?
|
440?
|
8-M16?
|
220?
|
??
|
|
125?
|
56?
|
250?
|
210?
|
185?
|
510?
|
8-M16?
|
230?
|
??
|
|
150?
|
56?
|
285?
|
240?
|
210?
|
600?
|
8-M20?
|
280?
|
??
|
|
200?
|
60?
|
340?
|
295?
|
265?
|
700?
|
12-M20?
|
360?
|
??
|
|
250?
|
68?
|
405?
|
355?
|
310?
|
840?
|
12-M22?
|
360?
|
??
|
|
300?
|
78?
|
460?
|
410?
|
375?
|
960?
|
12-M22?
|
400?
|
??
|
|
350?
|
78?
|
520?
|
470?
|
435?
|
1110?
|
16-M22?
|
400?
|
??
|
|
400?
|
102?
|
580?
|
525?
|
485?
|
1250?
|
16-M27?
|
400?
|
??
|
|
450?
|
114?
|
640?
|
585?
|
545?
|
1380?
|
20-M27?
|
530?
|
??
|
|
500?
|
127?
|
715?
|
650?
|
609?
|
1530?
|
20-M30?
|
530?
|
??
|
|
600?
|
154?
|
840?
|
770?
|
720?
|
1800?
|
20-M36?
|
600?
|
??
|
|
700?
|
165?
|
910?
|
840?
|
788?
|
2150?
|
24-M36?
|
600?
|
??
|
|
800?
|
190?
|
1025?
|
950?
|
898?
|
2420?
|
24-M36?
|
680?
|
??
|
|
900?
|
203?
|
1125?
|
1050?
|
998?
|
2680?
|
28-M36?
|
680?
|
??
|
|
1000?
|
216?
|
1255?
|
1170?
|
1110?
|
3100?
|
28-M42?
|
700?
|
??
|
|
1200?
|
254?
|
1485?
|
1390?
|
1325?
|
3450?
|
??
|
??
|
??
|
?
|
?
|
|
