KV-16A8/F-0 氣動罩杯定型機

?

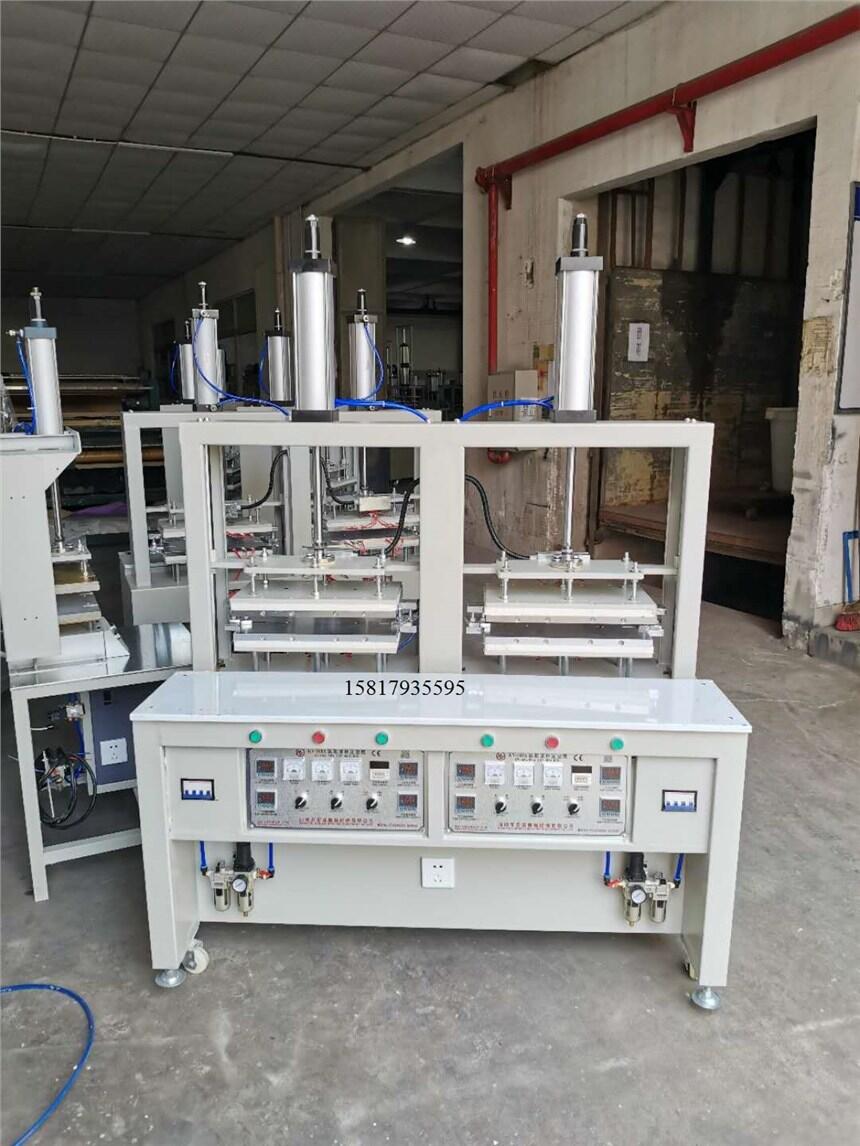

KV-168A/F-0 PNEUMATIC BRA CUP MOULDING MACHINE

?

用途：主要用于內衣模杯產品及其他同類產品的定型生產。

特點：

1.機體外形精巧，結構緊湊，上下模易吻合,運作平穩; .

2.內置式電熱管裝置，進口溫控表及保溫材料控溫隔熱，繼電器自動顯示加溫時間，減少電量消耗；

3.左右獨立恒溫控制及上下模雙向驅動，均衡左右模杯溫度，有效利用整機空間，克服傳統溫差過大造成的陰陽色差缺陷；

技術參數：

1.電源/功率：220V/8KW?

2.電熱片規格：Φ12×220mm×500W/200V

3.模臺尺寸：450mm×220mm

4.機臺尺寸：1450mm×650mm×1850mm

5.適用物料：文胸、服裝等面料

6.適用模具：文胸棉模及定布模具

7.重量：350KG

?

Function:

It is mainly used for molding different foam bra cups and other similar products..

?

Features:

?

1. It is delicate and exquisite in appearance and compact in structure. The upper moulds can be easily coincided with the lower moulds so as to operate steadily.

?

2. Equipped with the internal heating pipes, imported thermostat and heat insulator materials to control the temperature. The machine can show the heating time automatically and reduce the power-consumption.

?

3. It adopts independent thermostatic control in both sides and upper and lower bi-directional driver, which can balance the temperature of left and right moulds and make effective use of the whole space, overcoming the chromatism defect caused by the difference in temperature.

?

Technical parameter:

?

1. Power supply/power: 220V/8KW?

?

2. Specification of the electrothermal tube :?Φ12×220mm×500W/200V

?

3. Dimension of? the mould table: 450mm×220mm

?

4. Dimension of the machine: 1450mm×650mm×1850mm

?

5. Suitable material: foam or fabric materials for bras and other garments.

?

6. Suitable moulds: moulds for foam bra cup and fabric cup

?

7. Weight:350KG

?

?
