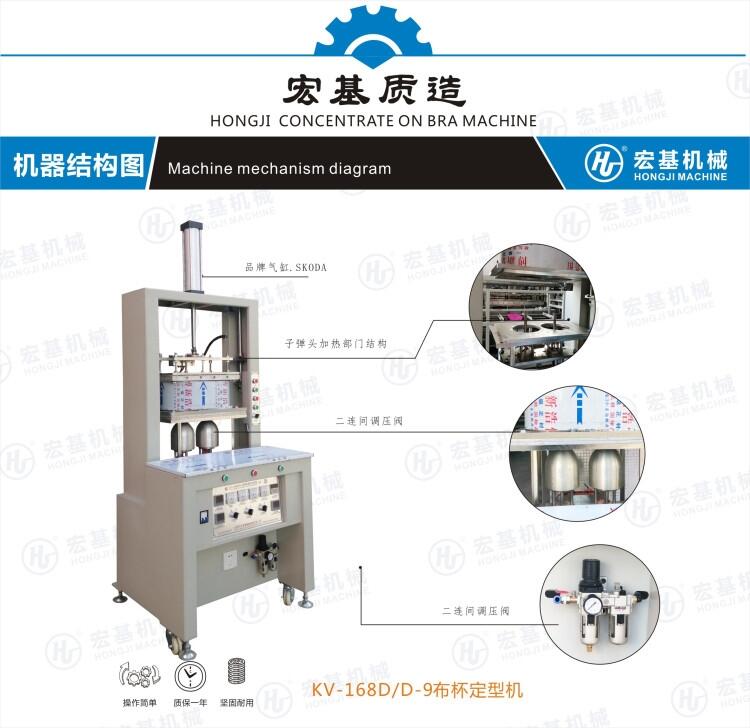

KV-168D/D-9 氣動文胸定布定型機

KV-168D/D-9 Bullet Head Bra Cup Molding Machine

用途：

該機適用于各種布料。模具的熱壓定型。

特點：

1.模頭根據客戶對產品的不同需求隨意調換。

2.整機發熱均勻，加溫速度快，生產效率高。

3.操作方便，省電，省時，成型一致。

4.按鈕雙手操作，確保生產安全。

技術參數：

1.電源/功率：220V/4KW

2.電熱片規格：Φ12×250mm×500W-220V Φ16×150mm×700W-220V

3.模臺尺寸：450mm×300mm

4.機臺尺寸：800mm×720mm×2100mm

5.適用物料：文胸、服裝等面料

6.適用模具：文胸棉模及定布模具

7.重量：250KG

Function：

This machine is suitable for molding various fabric bra cups by the bullet head moulds’ themal-pressing.

Features:

1. The bullet head can be adjusted freely according to the different requirements of the customers.

2. The whole machine heats evenly, has rapid warming-up speed and high production efficiency.

3. It is easy to operate and of power-saving, time-saving and consistent molding.

4. The buttons are controlled by both hands, ensuring the production safety.

Technical parameter:

1. Power supply/power: 220V/3.4KW

2. Specification of the electrothermal piece:

Φ12×250mm×500W-220V Φ16×150mm×700W-220V

3. Dimension of the mould table: 450mm×300mm

4. Dimension of the machine: 800mm×720mm×2100mm

5. Applicable material: fabric for foam bra and other garments

6. Applicable moulds: the moulds for foam bra cup and fabric cup

7. Weight: 250KG
