電池型號 Battery Model |
額定電壓Voltage (V) |
額定容量Nominal Capacity (AH) |
外形尺寸Dimension (mm) |
端子形式Terminal |
|||||||
|
20HR |
10HR |
5HR |
3HR |
1HR |
長 |
寬 |
高 |
總高 |
|||
|
1.80V/Cell |
1.80V/Cell |
1.75V/Cell |
1.75V/Cell |
1.67V/Cell |
Length |
Width |
Height |
Total Height |
|||
|
DJM1238 |
12 |
40.2 |
38.0 |
33.3 |
30.3 |
23.4 |
197±2 |
165±1 |
170±1 |
170±1 |
T6 |
|
DJM1240 |
12 |
42.4 |
40.0 |
35.0 |
31.8 |
24.6 |
197±2 |
165±1 |
170±1 |
170±1 |
T6 |
|
DJM1245 |
12 |
47.8 |
45.0 |
39.4 |
35.7 |
27.7 |
197±2 |
165±1 |
170±1 |
170±1 |
T6 |
|
DJM1250 |
12 |
53.0 |
50.0 |
43.8 |
39.9 |
30.8 |
257±2 |
132±1 |
200±2 |
200±2 |
T6 |
|
DJM1255 |
12 |
58.4 |
55.0 |
48.2 |
43.8 |
33.8 |
229±2 |
138±1 |
205±2 |
226±2 |
T6 |
|
DJM1260 |
12 |
63.6 |
60.0 |
52.5 |
47.7 |
36.9 |
259±2 |
168±1 |
208±2 |
214±2 |
T6 |
|

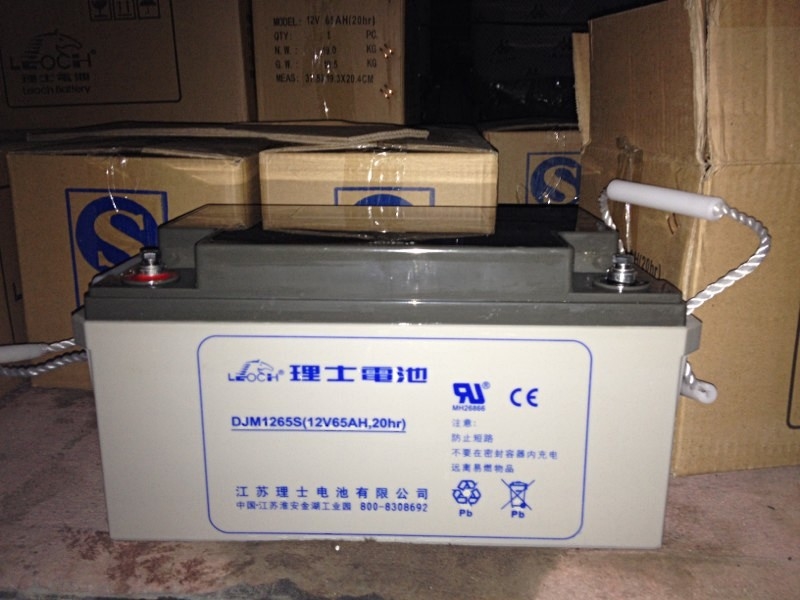

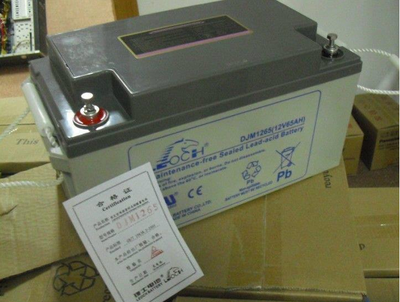

DJM1265 |
12 |
69.0 |
65.0 |
57.0 |
51.6 |
40.0 |
348±3 |
167±1 |
178±1 |
178±1 |
T6 |
|
DJM1275 |
12 |
79.6 |
75.0 |
65.5 |
59.7 |
46.1 |
348±3 |
167±1 |
178±1 |
178±1 |
T6 |
|
DJM1275H |
12 |
79.6 |
75.0 |
65.5 |
59.7 |
46.1 |
259±2 |
168±1 |
208±2 |
230±2 |
T6 |
|
DJM1280 |
12 |
84.8 |
80.0 |
70.0 |
63.6 |
49.2 |
259±2 |
168±1 |
208±2 |
214±2 |
T6 |
|
DJM1290 |
12 |
95.4 |
90.0 |
79.0 |
71.7 |
55.4 |
330±3 |
173±1 |
212±2 |
220±2 |
T11 |
|
DJM1290H |
12 |
95.4 |
90.0 |
79.0 |
71.7 |
55.4 |
305±3 |
168±1 |
207±2 |
213±2 |
T6 |
|
DJM12100 |
12 |
106 |
100 |
87.5 |
79.5 |
61.5 |
330±3 |
173±1 |
212±2 |
220±2 |
T11 |
|
DJM12120 |
12 |
127 |
120 |
105 |
95.4 |
73.8 |
410±3 |
177±1 |
225±2 |
225±2 |
T11 |
|
DJM12140 |
12 |
148 |
140 |
123 |
111 |
86.1 |
344±3 |
171±1 |
274±2 |
280±2 |
T11 |
|
DJM12150 |
12 |
159 |
150 |
132 |
119 |
92.3 |
485±3 |
170±1 |
240±2 |
240±2 |
T11 |
|
DJM12180 |
12 |
191 |
180 |
158 |
143 |
111 |
530±3 |
209±2 |
214±2 |
220±2 |
T11 |
|
DJM12200 |
12 |
212 |
200 |
175 |
159 |
123 |
522±3 |
240±2 |
218±2 |
224±2 |
T11 |
|
DJM12230 |
12 |
244 |
230 |
202 |
183 |
141 |
522±3 |
240±2 |
218±2 |
224±2 |
T11 |
|
DJM12250 |
12 |
266 |
250 |
219 |
199 |
154 |
522±3 |
268±2 |
220±2 |
226±2 |
T11 |
